AWS PrivateLink is a highly available, scalable technology that enables you to privately connect your VPC to supported AWS services, VPC endpoint services, and AWS Marketplace partner services. When you use AWS PrivateLink, your network traffic between your VPC and PlanetScale stays within the AWS network, without traversing the public internet. By default, PlanetScale for Postgres databases use secure connections over the public internet with industry-standard TLS encryption. This approach is secure and meets the needs of most customers. However, you may want to consider AWS PrivateLink if:
  • Compliance requirements: Your organization has stronger regulatory or compliance mandates that require database connections to avoid the public internet entirely
  • Enhanced security posture: You want an additional layer of network isolation for sensitive data workloads
  • Network architecture: Your existing AWS infrastructure is designed around private connectivity patterns
  • Reduced network latency: AWS PrivateLink can help reduce latency by avoiding the extra network hop through a NAT gateway that’s typically required for outbound internet connections from private subnets. While this latency difference is often minimal (typically single-digit milliseconds), it may be noticeable if you’re migrating from a database that was previously hosted directly within your VPC
AWS PrivateLink provides these security and compliance benefits by ensuring your database traffic never leaves the AWS backbone network.
Normal PlanetScale for Postgres connectivity (as described in our standard connection documentation) uses secure TLS encryption over the public internet and is appropriate for most use cases. AWS PrivateLink is primarily beneficial for compliance and enhanced security requirements.
PlanetScale does not charge any additional fees for AWS PrivateLink connectivity. However, AWS charges standard PrivateLink pricing for VPC endpoints, which includes:
Charge TypeRateDescription
VPC endpoint hourly charges~$0.01 per hourPer VPC endpoint (varies by region)
Data processing charges~$0.01 per GBData processed through the VPC endpoint (varies by region)
For current pricing in your region, see the AWS PrivateLink pricing page.

​
Prerequisites

​
Establishing a VPC endpoint

  1. Retrieve the Private Service Name:
    1. From the PlanetScale organization dashboard, select the desired database
    2. Navigate to Settings from the menu on the left
    3. Select Roles
    4. Click on a role with permissions to the relevant Branch

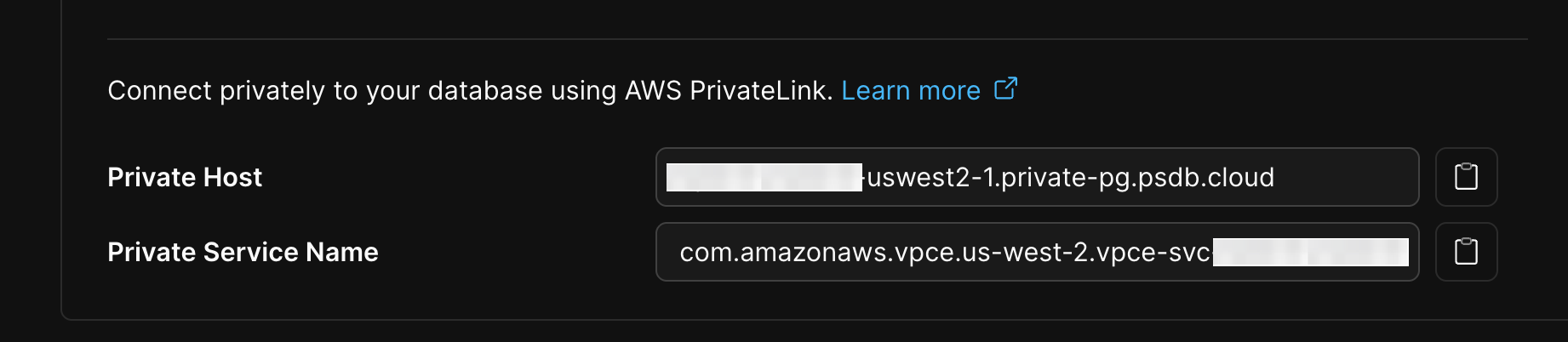

    5. Copy the Private Host and Private Service Name from the role details
Private connection strings Save these two attributes for your records and the rest of the configuration.
Both the Private Host and Private Service Name values are the same for all roles for a given PlanetScale database Branch. Once enabled, any role can use the PrivateLink endpoint. You do not need to configure this per PlanetScale Role.
  1. Create a Security Group for the Endpoint: You will need an AWS Security Group configured to allow inbound traffic for the required ports. You can configure access using either the security group ID of your application hosts, your VPC’s CIDR configuration, or specific subnet CIDR configurations. Ensure your security groups allow:
    • Inbound PostgreSQL (port 5432): For direct database connections
    • Inbound PSBouncer (port 6432): For pooled connections via PSBouncer
    An example using the AWS CLI:
    # Create the security group (capture its ID)
SG_ID=$(aws ec2 create-security-group \
--group-name PScalePrivateLinkEndpointSG \
--description "Security group for PlanetScale PrivateLink endpoint" \
--vpc-id <your-vpc-id> \
--query 'GroupId' --output text)

# Option A (preferred): allow only from a client SG (replace sg-CLIENT)
aws ec2 authorize-security-group-ingress \
   --group-id "$SG_ID" \
   --ip-permissions '[
     {"IpProtocol":"tcp","FromPort":5432,"ToPort":5432,"UserIdGroupPairs":[{"GroupId":"sg-CLIENT"}]},
     {"IpProtocol":"tcp","FromPort":6432,"ToPort":6432,"UserIdGroupPairs":[{"GroupId":"sg-CLIENT"}]}
   ]'

# Option B: allow from entire VPC CIDR (replace with your actual CIDR)
#aws ec2 authorize-security-group-ingress \
#--group-id "$SG_ID" \
#--ip-permissions '[
#   {"IpProtocol":"tcp","FromPort":5432,"ToPort":5432,"IpRanges":[{"CidrIp":"10.0.0.0/16"}]},
#   {"IpProtocol":"tcp","FromPort":6432,"ToPort":6432,"IpRanges":[{"CidrIp":"10.0.0.0/16"}]}
#]'
    Replace <your-vpc-id> with your actual VPC ID. You can find your VPC ID and its CIDR block using:
    aws ec2 describe-vpcs --query 'Vpcs[*].[VpcId,CidrBlock]' --output table
  2. Navigate to VPC Endpoints: In your AWS Console:
    1. Confirm you are in the proper <aws-region> from the dropdown on the top right
    2. In the search field at the top left enter “Endpoints”.
    3. Click the link listed as a VPC Feature.
    Endpoint search
  3. Create a new endpoint: Click “Create Endpoint”. Create a new endpoint
  4. Select endpoint type: Choose “Endpoint services that use NLBs and GWLBs”. Menu to select endpoint type
  5. Enter service name: Enter in the “Service name” text box the Private Service Name retrieved from the PlanetScale dashboard. Click “Verify service” to confirm the service exists. Endpoint service name and verification

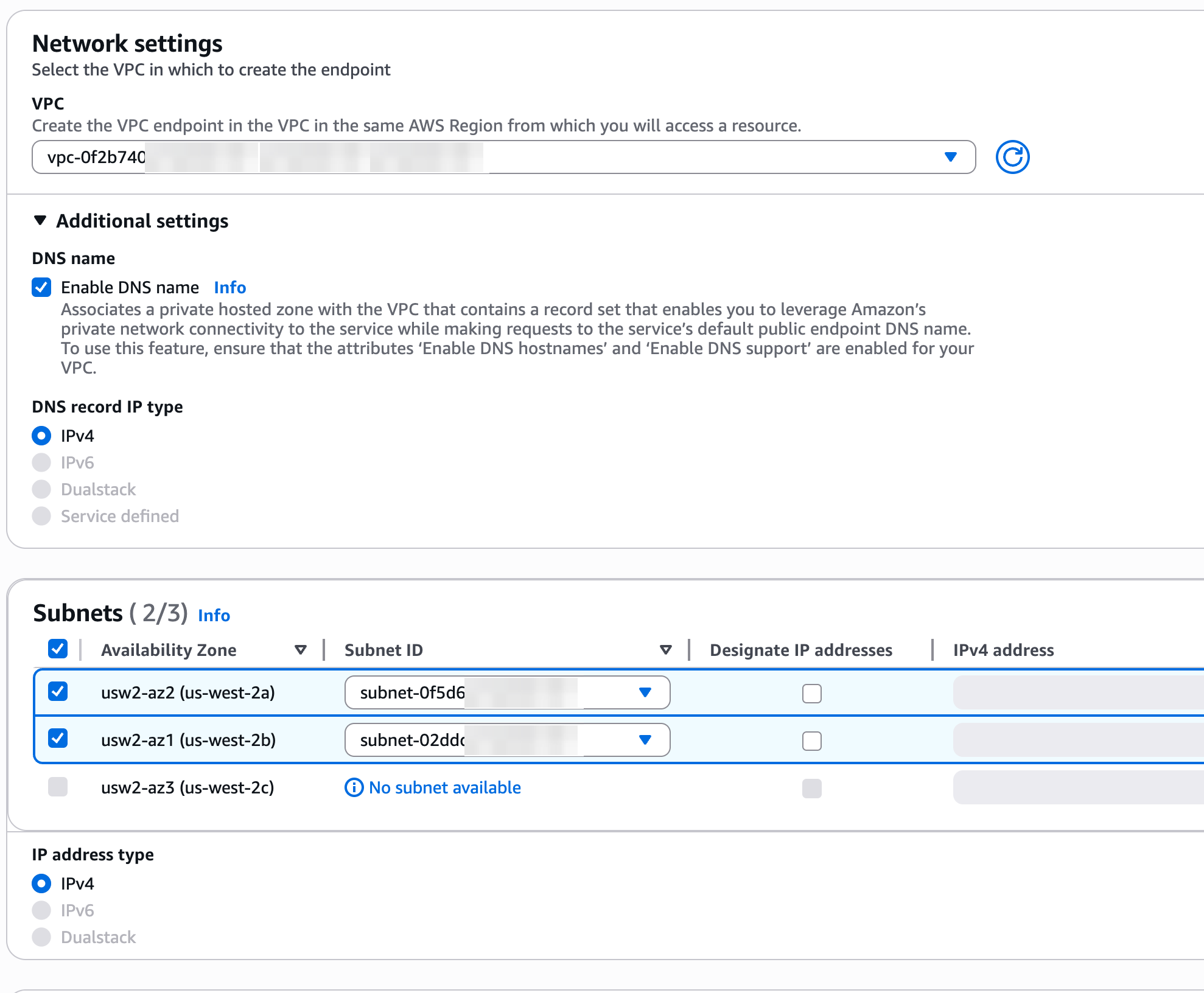

  6. Configure VPCs: Choose the VPC that should have access to the PlanetScale service endpoint.
  7. Enable DNS names: Click the “Additional settings” dropdown arrow to reveal DNS configuration options, and select the “Enable DNS name” checkbox.
  8. Configure Subnets: Choose the subnets that should have endpoint interfaces for the PlanetScale service endpoint. It is recommended that you select at least 2. You should select subnets that your application servers have access to.
Subnets

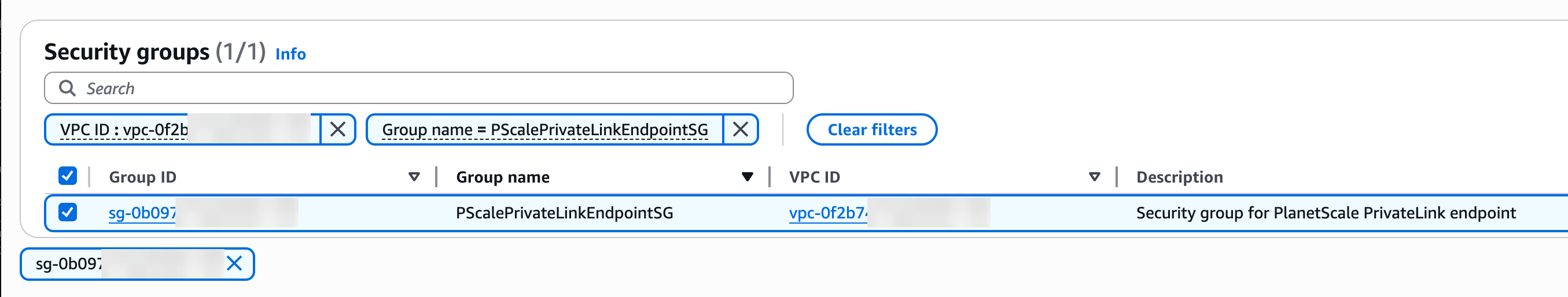

  1. Configure security groups: Choose the appropriate security group to control which resources can send traffic to the PlanetScale service endpoint. Use the one created earlier if you created one for this purpose.
Security Groups

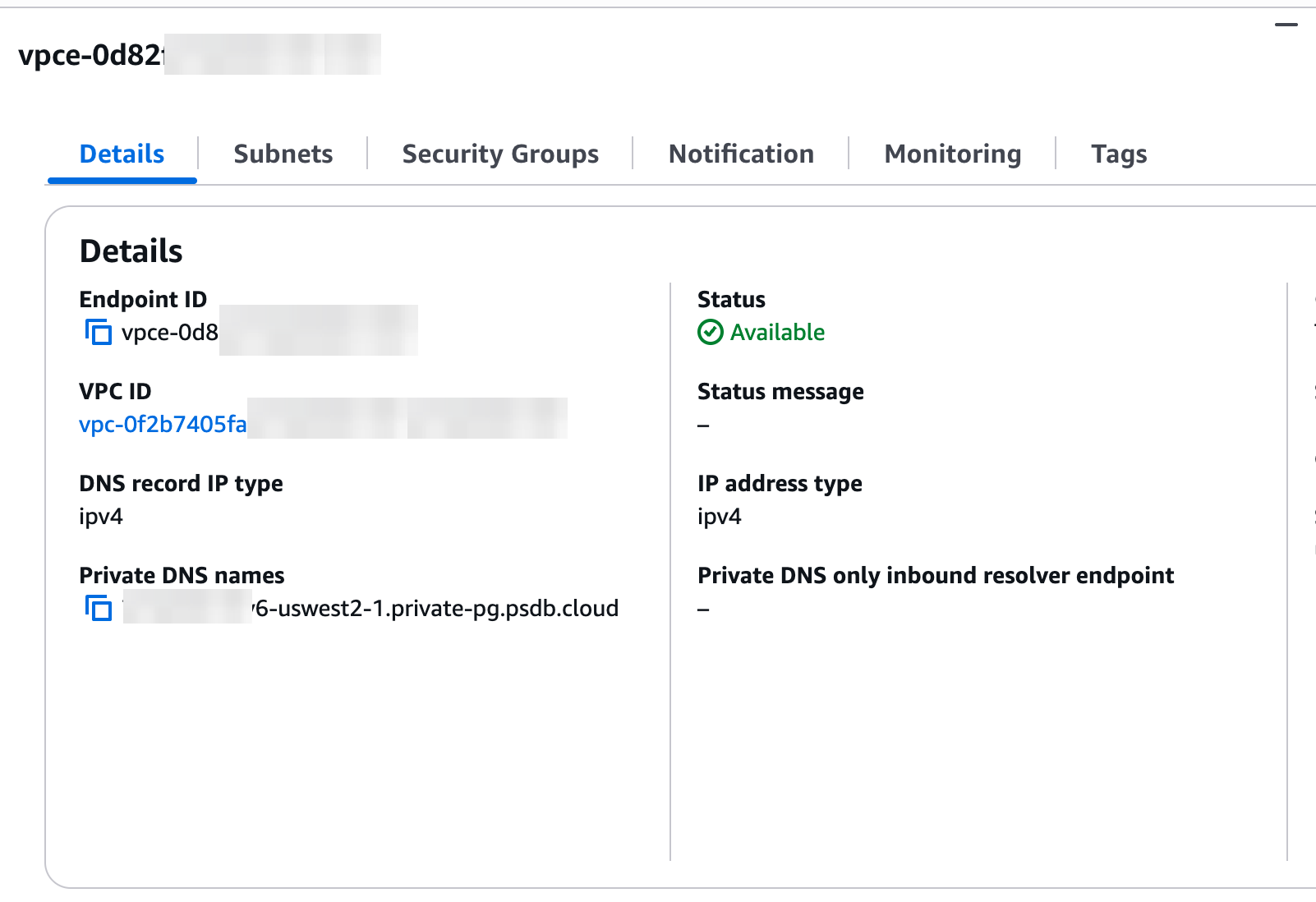

  1. Create the endpoint: Click “Create endpoint” and wait for the VPC endpoint status to show “Available” (this may take several minutes).
Available Endpoint

​
Verifying your VPC endpoint connectivity

  1. Confirm endpoint status: In the AWS Console, verify that your endpoint’s status shows “Available”.
  2. Test DNS resolution: From an EC2 instance in your configured VPC, run a DNS lookup to confirm resolution to your VPC’s IP range. Use the Private Host you recorded earlier from the PlanetScale dashboard:
    dig +short <YOUR ENDPOINT>.private-pg.psdb.cloud
10.0.2.120
10.0.1.118
  3. Test your new connection: Once you have confirmed DNS resolution, test the private endpoint:
    psql 'host=<YOUR ENDPOINT>.private-pg.psdb.cloud port=5432 user=postgres.XYZ234 password=pscale_pw_REDACTED dbname=postgres sslnegotiation=direct sslmode=verify-full sslrootcert=system'

​
Update your connection strings

Once your VPC endpoint is established and verified, you’re ready to update your application’s connection strings to use the private endpoint address instead of the standard public endpoint.

​
Security group considerations

Ensure your security groups allow:
  • Outbound PostgreSQL (port 5432): For direct database connections
  • Outbound PSBouncer (port 6432): For pooled connections via PSBouncer
  • Inbound - any application-specific ports: Based on your connection requirements
For more details about connection types and when to use each port, see our connection documentation and PSBouncer guide.

​
Network ACL considerations

VPC Network ACLs (NACLs) operate at the subnet level and provide an additional layer of security beyond security groups. For AWS PrivateLink connections to PlanetScale, ensure your NACLs allow:
  • Outbound PostgreSQL (ports 5432, 6432): For database connections
  • Ephemeral ports (1024-65535): For return traffic from AWS PrivateLink endpoints
Most default NACL configurations allow all outbound traffic and are compatible with PrivateLink. If using custom restrictive NACLs, add explicit allow rules for the above ports.

​
Troubleshooting

If you’re experiencing connectivity issues:
  1. Verify endpoint status: Ensure your VPC endpoint shows “Available” status
  2. Check security groups: Confirm your security groups allow the required ports
  3. Check NACLs: Confirm that your VPC’s NACLs are configured to allow the correct network traffic
  4. Test DNS resolution: Verify DNS is resolving to private IP addresses in your VPC CIDR range
  5. Use AWS Reachability Analyzer: The Reachability Analyzer allows you to inspect the path between two resources (such as a client and your PlanetScale for Postgres endpoint) and provides guidance on why connectivity might be failing
  6. Contact support: If issues persist, contact PlanetScale support with your endpoint configuration details

​
